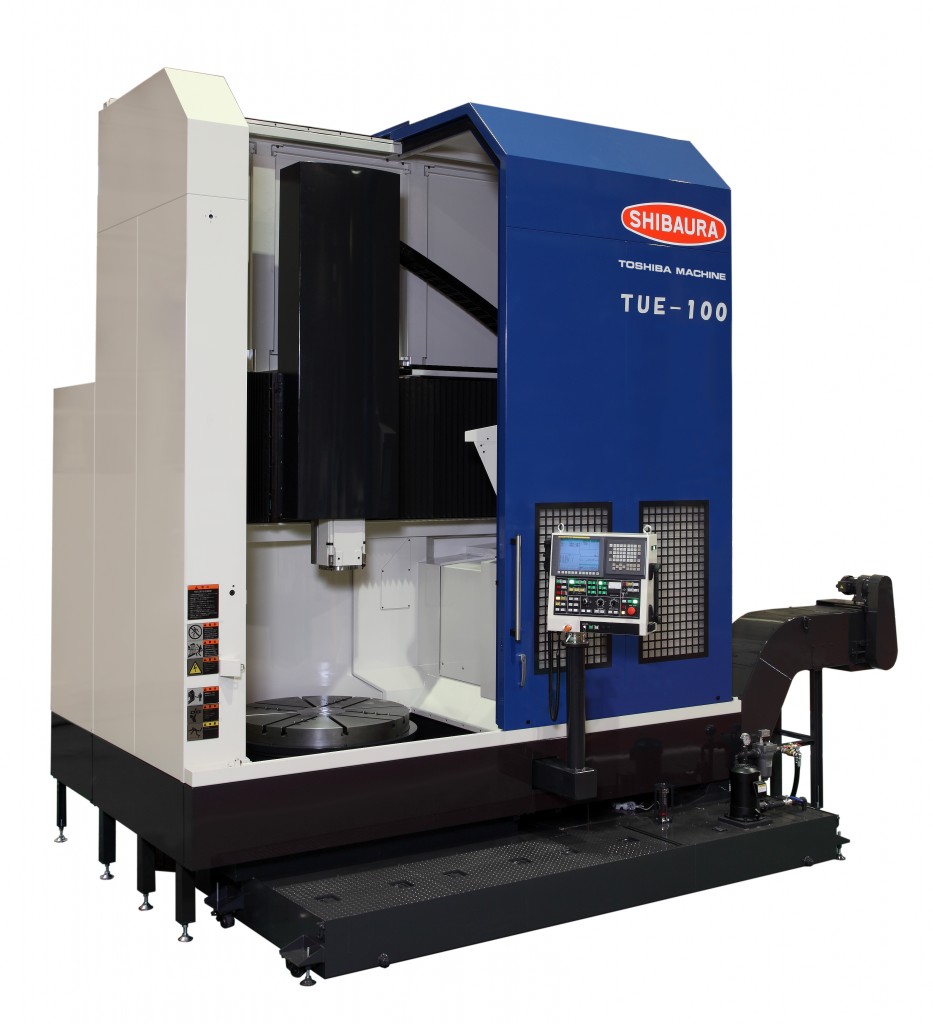

Toshiba Machine Co., America is excited to feature the newest addition to the TUE Series of vertical boring and turning mills at IMTS this year: the TUE-100. With a one meter (40”) table diameter, this VTL is designed for high speed, heavy-duty cutting with a max load up to 2000 kg (4400 lbs).

The TUE-100 utilizes the same field-tested design as larger TUE models, capitalizing on the identical ram cross section to support the railhead for increased precision.  Further improving cutting performance are the two types of bearings to support both the radial and axial loads of the table, along with the high quality cast iron bed, specifically designed for efficient chip removal.

Sitting within a more compact 5m x 3.5m x 4m (200” x 138” x 174”) footprint compared to larger models, the TUE-100 showcases the highest rapid rate available in its class with feed rates up to 2000 mm/min, thus reducing cycle times and increasing productivity.

Machine Specification

Table diameter：Φ1016mm (Φ40in)Maximum swing：Φ1200mm (Φ47.2in)Maximum cutting height：850mm (33.5in)Maximum height：1055mm (41.5in)Travel (X-axis×Z-axis): 1000×900×700×350mm (39.4×35.4×27.6×13.8in)Table drive motor: AC45/37kW (60/50HP)Table speed: 2～600min-1Floor space：5080×3530mm (200×139in)Machine height: 4432mm (174.5in)Mass of machine(including CNC system): 11 000kg (24 200lbs)

In addition, the wide range of table speeds allows for exceptional surface finishes on a variety of materials.

For more information on the TUE-100 vertical boring and turning mill visit  Booth# S-9436 at IMTS or online at www.toshiba-machine.com.
