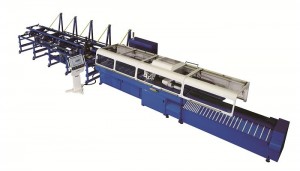

The new SOCO tube cutting line, SA-150NC-Mitre, is an automatic angle cutting line with capacity up to O.D.152mm, suitable for cutting round, square, and rectangular tubing, as well as other types of profiles. SOCO is distributed by Westway Machinery in Mississauga, Ontario.

With the SOCO i2 controls and built-in nesting system, it allows for easy and quick set-up even for the most complex shapes, while customizing cutting processes depending on output or material savings requirements.

Straight and angle cutting line for tubes and profiles, four electric axis and max. O.D. 152mm

Complete automation:

Loading with bundle loading systemFeedingCutting and clampingStraight or angle tube cuttingRecutting (feeding back into the machine for secondary cuts on both sides of the material)UnloadingCutting leftover disposalCrop cuts vs. workpiece separation

Nesting system

Built-in system with graphical interfaceRecommendation based on available stock, cutting lengths, output order and most economical process (least material wastage)

Automatic cutting and recutting

Automatic cutting angle set-upWide angle cutting range: 30-90-30 degreesAbility to make up to 3 cuts on both sides of the materialVariable speed (RPM) and cutting feed through entire cut for high efficiency cutting and saw blade life. All parameters will be recommended on-screen after simply inputting basic material information.
