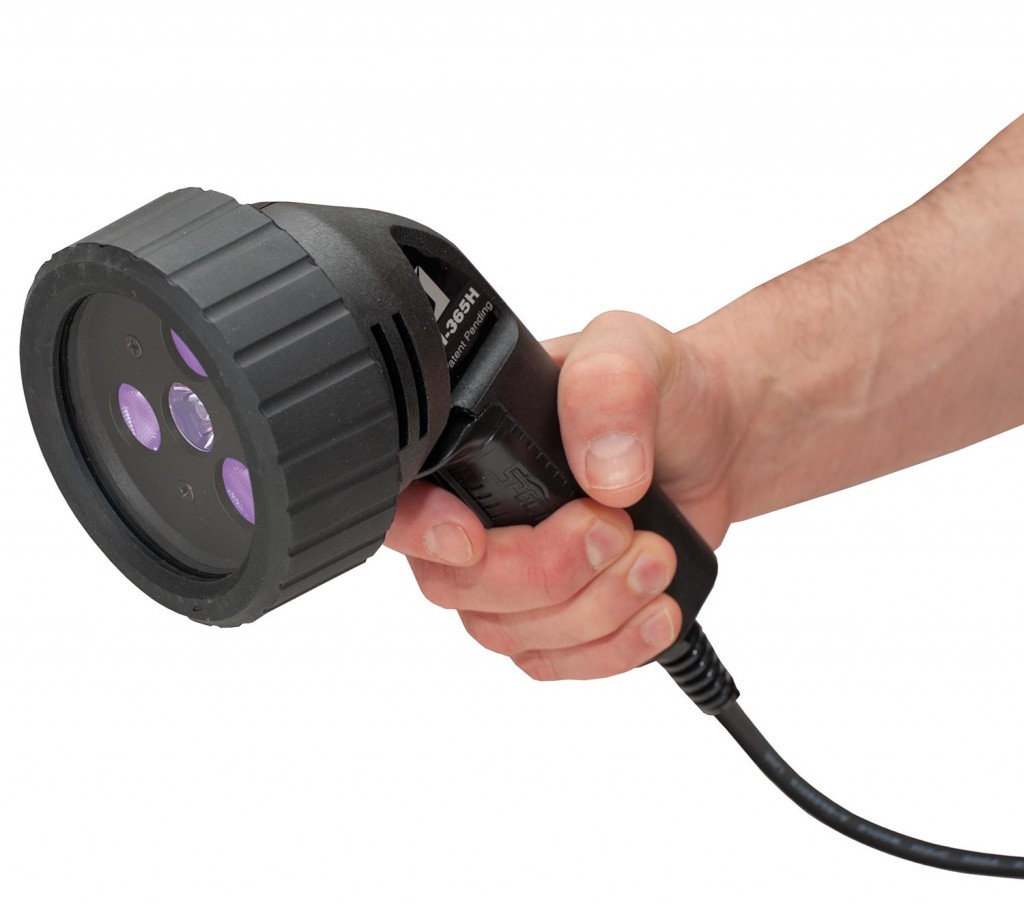

The Spectronics Corporation has introduced their TRITAN 365 Series, multi-LED, broad-beam UV-A (365 nm) lamps that can be used for a wide range of NDT applications.

Each lamp features three ultra-hi-flux UV-A LEDs for NDT inspection, plus a white light LED to illuminate dark work areas. A rubber bumper with a Borofloat glass lens protects the LEDs from damage.

The lamps are compact and lightweight at 16 ounces (454 g). The lamp bodies have an ergonomic design that provides hours of safe, fatigue-free use.

The TRITAN 365 Series lamps are available in three versions to meet specific NDT inspection requirements. The TRI-365H high-intensity model provides a nominal steady-state UV-A intensity of 9,000 µW/cm² at 15 inches (38 cm).

The TRI-365D and TRI-365DB are standard-intensity models that are tuned to ensure a maximum steady-state UV-A intensity of less than 5,000 µW/cm² at 15 inches (38 cm), to address aerospace concerns.

The DB lamp has a faceplate with integral black light filters that cover the LEDs and reduce the output of wavelengths longer than 400 nm. A certificate of compliance for both output and wavelength measurements is supplied with each lamp, and all units meet ASTM UV-A intensity and wavelength specifications for FPI and MPI.

Also available are the TRITAN 365 Series portable, battery-operated AC/DC lamp kits. Along with the TRITAN 365 UV lamp, the kits contain a rechargeable NIMH battery pack, AC and DC cord sets, smart AC charger and UV-absorbing glasses, all packed in a padded carrying case.

www.spectroline.com
