ENVIROFLEX International

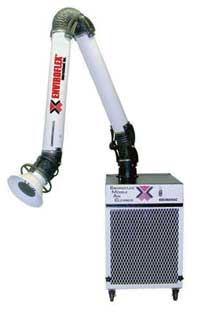

The ENVIROMAC portable welding smoke extractor is ideal for portable and fixed welding, dust and oil mist applications.
The unit comes standard with a high efficient washable filter and activated carbon in both doors. You utilize a precoat powder (Envirocoat) to maximize the filtration efficiency and prolong the life expectancy of the filter. The high efficient washable filter can be cleaned with an air hose or a pressure washer. There is also an optional throwaway paper filter.
The unit comes standard with the Snorkvac Fume Extractor Snorkel Arm which is 10 ft (3 m) long and 6 in. (160 mm) wide. The fume arm is externally supported to minimize the restriction to the air flow (pressure drop). It also makes arm adjustments or hose replacements much easier than an internally supported arm. The arm has a handle at the hood plus an additional handle on the first tube. The hood has an air diverter in it to increase the face velocity thus increasing the capture distance. The air diverter also gives you uniform air flow.
The units have 25 ft. of primary cable. The MAC1 runs off a 120 volt, 20 amp service outlet. The MAC2 runs off a 120 volt, 15 amp service outlet. The motors have thermal overload protection on the actualmotor.
There is also a standalone adjustable contactor overload which is located behind the Electrical Control Panel. This maximizes the protection to the motor. The top panel (Electrical Control Panel) of the machine allows easy access to the electrical components.
www.enviroflex.com
Lincoln Electric
Lincoln Electric’s Statiflex 400-MS is a stationary, wall-mounted low vacuum/high volume system designed for light to medium duty extraction and filtration of welding fume. A self-cleaning filter is standard on the unit. The unit is ideal for facilities with fixed location work stations and little available floor space, including general fabrication, job shops, welding schools and maintenance departments.
It features a generous airflow of 735 CFM with LFA 3.1 or 4.1 extraction arms and a SF 2400 fan. The internal spark arrestor also functions as a pre-filter for larger-sized particulate.
