Emuge

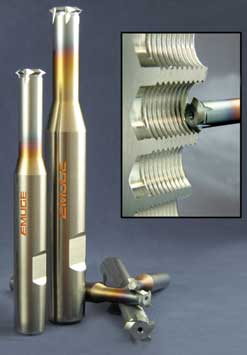

Emuge Corp.’s expanded line of solid carbide thread mills, THREADS-ALL require minimal tooling and quickly adapt to a wide range of threading requirements to easily and safely machine with unsurpassed thread quality and tool life, claims the company.

Requiring only eight standard tool sizes, #10 – 1/4 5/16 – 3/8 – 7/16 -1/2 – 5/8 – 3/4, it is now possible to quickly and economically produce 100+ commonly produced screw thread designations including UNC – UNF – STI UNC – STI UNF – UNEF –

UNS UNJC – UNJF – M – MJ. In addition, THREADS-ALL tools provide total control over pitch diameter limits including 2B, 3B, 3BG and all oversize variants.

The Emuge THREADS-ALL program is designed for difficult-to-cut materials, up to 58Rc, including stainless steels, titanium and Inconel often used in demanding industries such as aerospace, defense and medical.

The Emuge thread mill range is designed through in-depth analysis of thread dimensions and tolerances and advanced profile geometry correction in the finish grind, for true-to-gage threads.

The Solid Carbide Thread Mills Program also includes miniature tools for dependable, easy machining of difficult materials. Miniature size thread mills provide a reliable threading solution and are available in ten sizes ranging from 0 to STI 8.
www.emuge.com

Komet
With the new MGF XH Micro, the KOMET GROUP has expanded its MGF thread milling tools into the dimension range of M 1-M2.5. These left-hand cutting tools are designed with one profile, with two or three flutes and fitted with a 90° countersink that is standard in this series. The attainable thread length is at a length-to-diameter ratio of 1.5 x D.

The tools make machining directly into hardened metal possible, even with the smallest of diameters. As is the case with all other standard (drilling) thread milling cutters from Komet, CNC programs can be generated online under tpt.kometgroup.com and are available worldwide around the clock from every PC with internet access.
www.komet.com
