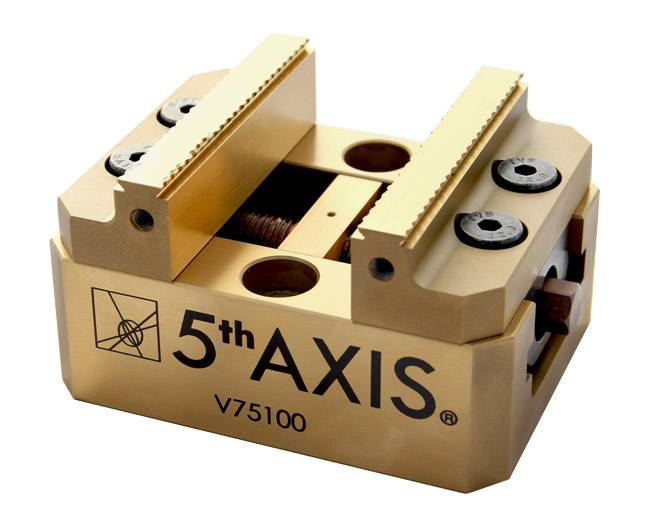

5th Axis introduces its newest V75100 self-centering 5 axis vise.

Designed to be the smallest self-centering vise in the 5th Axis product line, the V75100 offers maximum rigidity and clamping force in a compact package.

The V75100 is ideal for all 5-axis machining operations.  Its compact footprint makes it ideal for smaller 4 and 5 axis mills.

The V75100 pumps out 4,000 lbs. of clamping force at 45 ft. lbs. of torque. It provides access to 5 sides of the work piece, featuring a built in 45 degree dovetail, and gripper teeth that bite into stock without the need for a stamping unit.

Built from heat treated steel, the V75100 is milled and precision ground to exacting standards and offers a centering accuracy of .0005”.

The removable and reversible master jaws allow for an increased clamping range .05”–3.5”.  The jaws are simple to remove allowing for quick changeover between hard and soft jaws.

When the V75100 was designed, the goal was to have quick and easy alignment features.  Two precision threaded shoulder bolts secure and locate the jaws of the V75100. The vise also utilizes a threaded centering hole and two self-centering clocking holes at 30mm.

Features of the V75100:

Heat treated / precision ground bodyCoated lead screw for lubricity and wear resistanceRemovable / reversible jaws that offer increased clamping rangeThreaded center and clocking holes to accept locating pins of all different diametersGripper teeth that bite into stock without the need to prep materialBuilt in standard 45 degree dovetail allowing increased clamping force

For more information, visit www.fifthaxis.com.
