Mitsui Seiki introduces a new line of machines, which builds on the Vertex 550-5X series. The new line has added features and capabilities with a broader range of options and configurations.

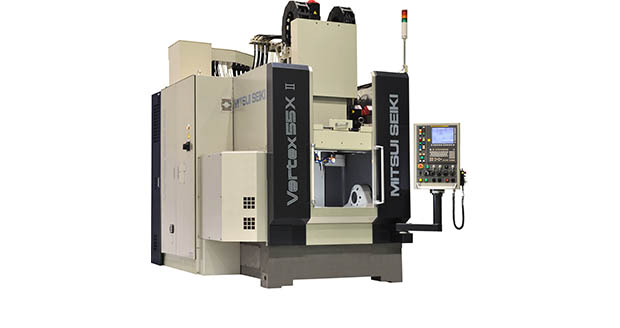

The new model series, comprising six distinct models, is now called Vertex 55X II. Linear axes (X, Y, Z) strokes are 550 mm (21.7”) x 600 mm (23.6”) x 500 mm (19.7”).
One of the key new features is an enhanced ultra high accuracy package. This option enhances Mitsui Seiki’s existing, well-established construction techniques for accuracy and precision, said Tom Dolan, Vice President of Sales & Marketing. As such, the Vertex line of machines are very well suited for tight-tolerance mold and die work, aerospace, energy, and other high precision component applications. Users can gain significant production improvements eliminating the traditional machine ‘warm up’ time for very demanding precision jobs. Positioning Accuracy in X, Y, and Z axes is 0.001 mm (0.000040”). A-axis: ±6 arc seconds; C-axis: ±4 arc seconds.
Mitsui Seiki now offers a new 30,000 rpm spindle with the Vertex 55X II, in addition to the 15,000 and 25,000 rpm choices. Customers can now take full advantage of the machine’s acceleration and deceleration characteristics and high speed machining functions. An HSK-80 taper spindle connection (for those requiring more heavy-duty machining) is available as an option to compliment the existing HSK-63 and 40-taper tool interfaces.
The Vertex 55X II line includes several configurations in the range, based on table sizes and types from 225 mm (9”) to 400 mm (15.7”) diameter. A choice of rotary axis drive systems – high torque geared type or direct drive – allows for the optimum machine configuration to suit the customer needs.
Additionally, the new Vertex is available in the “B”-series version. This is a high speed 5-axis VMC dedicated to turbine blade production, which is of special interest to the aerospace and energy industries. High performance coolant and chip handling systems are available to suit customer needs. Automation devices and systems may also be integrated for on-machine inspection and work handling to further reduce setup time, and improve overall quality throughput.
The Vertex 55X II geometric accuracy is carefully monitored in the tightest temperature-controlled factory environment in the world. The machine features a proprietary cast iron bed, which provides an ultra rigid, and thermally stable machine structure. A unique “box-in-box” design provides superior rigidity, stiffness and agility that is only available in a machine of this caliber.
