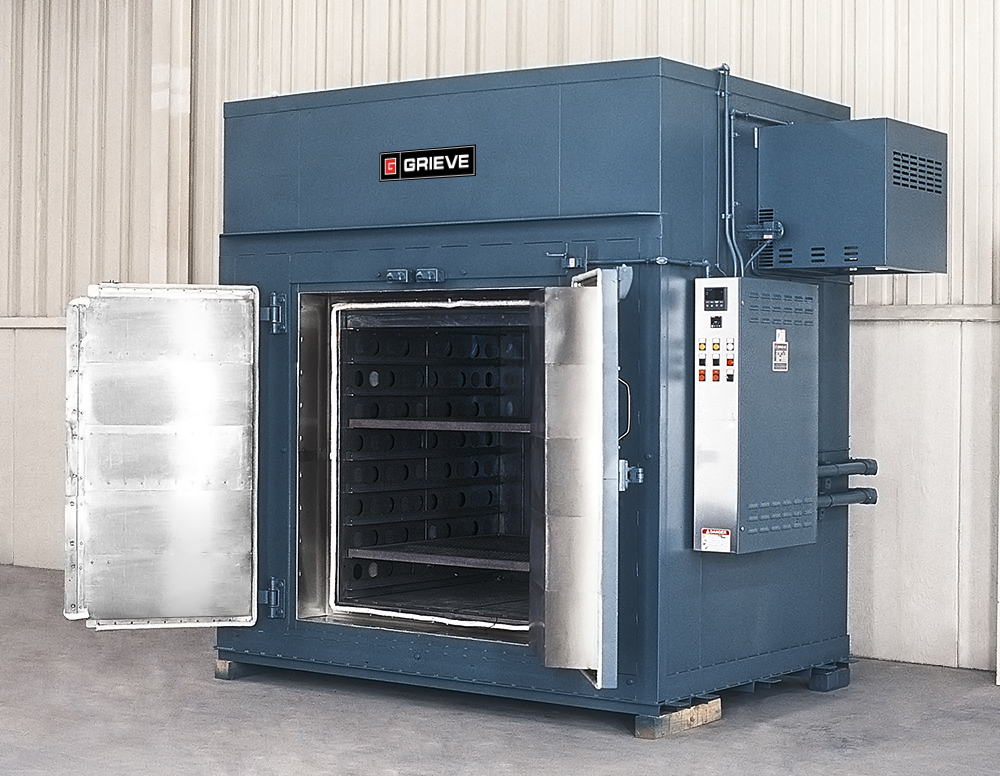

Grieve announces its newest cabinet oven. No. 975 is a 1250ºF (676ºC), electrically-heated cabinet oven.

This product is currently used for heating metal parts to remove deposits at the customer’s facility.

Workspace dimensions of this oven measure 50” W x 50” D x 50” H.  160 kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 6000 CFM, 5 HP recirculating blower provides horizontal airflow to the workload.

This Grieve cabinet oven features 10” insulated walls comprising 2” of 1900ºF block insulation and 8” of 10 lb/cf density rockwool insulation, top-mounted heating chamber, aluminized steel exterior, Type 304, 2B stainless steel interior and all safety equipment required for handling flammable solvents, including explosion-venting door hardware.   The insulated floor of the oven is reinforced for 1000 lb. loading with a 1/4” thick, Type 304 stainless steel plate.

No. 975 controls include a digital indicating temperature controller and manual reset excess temperature controller with separate contactors.
