ATI Industrial Automation has announced the release of its new tool changer.

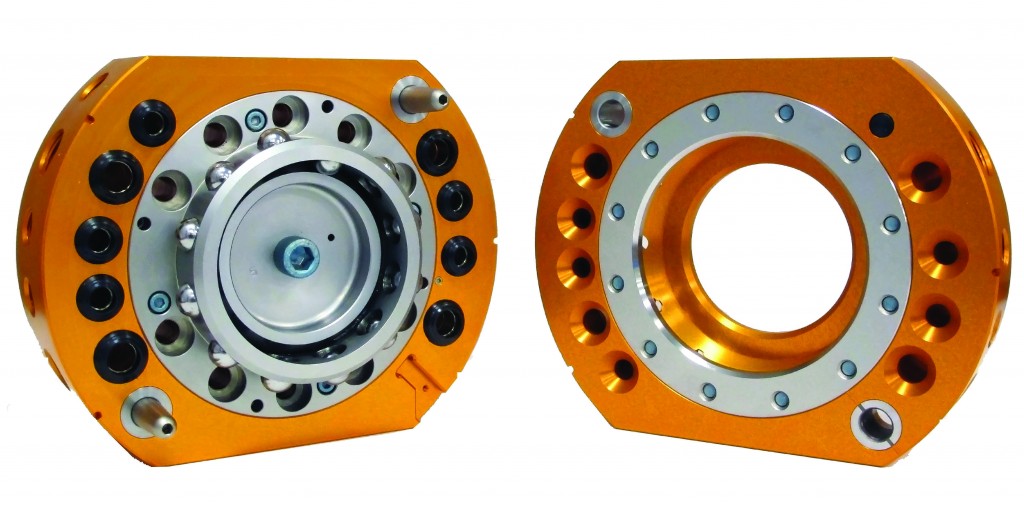

The new QC-160 Robotic Tool Changer has a high moment capacity in a lightweight and compact design and utilizes the same proven Locking Mechanism as ATI’s QC-200 Series. The Tool Changer features internal Lock/Unlock sensing and (5) 3/8 NPT and (4) ½ NPT pass-through air connections and easily mounts directly to most 200 kg robots.

The Tool Changer enhances the robots ability to switch end-effectors automatically and efficiently, greatly increasing productivity, while reducing downtime for changeovers.

ATI Robotic Tool Changers provide the flexibility to automatically change end-effectors or other peripheral tooling with accuracy and ease. ATI Tool Changers are designed to function reliably for millions of cycles at rated loads while maintaining extremely high repeatability. A variety of models are available to cover a wide range of applications from very small payloads to extremely heavy payload applications requiring significantly large moment capacity.

The QC-160 Tool Changer handles payloads of up to 600 pounds, and features integrated pneumatic ports and electrical connections.

Additional features include:

Patented Failsafe locking mechanism to ensure high-moment capacity and strengthA common Lock/Unlock air supply and a Lock/Unlock sensing methodFour (4) M5 pass-through air connections, eight (8) 3A/50VAC electrical connectionsA stack height of only 16.9 mm (0.67 inches). Also, No-Touch™ locking technology allows up to 0.1 in plate separation when locking.Positional repeatability (X, Y, and Z) tested at a rated load at one million cycles is 0.0006All locking parts are made of 58 HRC stainless steel and are designed for superior reliability, repeatability, and strength.

For more information, visit www.ati-ia.com.
