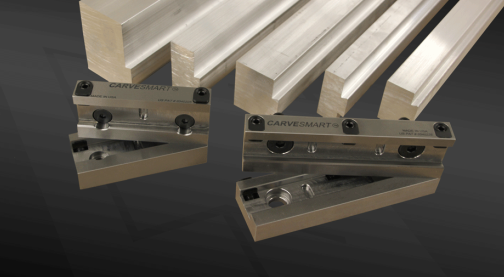

CARVEsmart has added a fully accessorized 4” tool steel master jaw set, SMARTstop for repetitive set ups, PERMAjaw a flippable ductile cast iron jaw and two new extruded aluminum profiles and new cut-to-any-length 1-1/2”W x 2”H and a 1”W x 1.71”H flippable extrusions.

The CARVEsmart system is designed for production and tool-room applications replacing the often cumbersome, conventional method of attaching vise jaws to a vise using face mounted cap screws.

The CARVEsmart dovetailed quick change vice jaw system employs three, from the top, channeled clamping elements with a dovetailed jaw design that quickly couples machineable or hard jaws. CARVEsmart’s dovetailed aluminum extruded jaw stock has no face mounting cap screws to dodge. This makes the soft jaw a fully machineable, inexpensive cut to any length vise jaw.

SMARTstop is a highly repeatable, front loading, internal to the jaw, vertical slot and dowel pin location system included in 4” and 6” CARVEsmart steel ground master jaw sets. Step and carved jaws will repeat +/-0.0003” when replaced in the original master jaw. Operators can dowel pin the aluminum jaws they wish to reuse or purchase SMARTstopped (pre-pinned) 4” and 6” jaws in all five aluminum profiles, 1018 or ductile cast iron jaws.

PERMAjaw is a SMARTstopped, ductile cast iron jaw set. It is ¾”W x 1.71”H and flips to expose a fresh face. It will repeat in the same master jaw +/-0.0003”. PERMAjaw is best for repeating jobs and matched to the spindle step jaws.

CARVEsmart offers economical, extruded aluminum, dovetailed jaw stock in five profiles of 1”W x 1.71”H flippable, ¾” x 2”, 1” x 2-1/4”, 1-1/2” x 2”, and 2” x 3” in lengths of 4, 6, 31 and 94 inches. Also available is ¾”W x 2”H dovetailed 1018 steel bar stock in 4”, 6” and 31” lengths. With CARVEsmart only one saw cut is necessary for any length jaw from 1” to 94”. This can reduce jaw cost by half or more compared to purchasing a commercially made jaw or making them in-house.

The CARVEsmart #MJSSG4 4 inch 4140 ground tool steel master jaw set, designed for production work, is ground flat and parallel within .0002”. This high quality set is fully accessorized with all SMARTstop options and accepts all jaw stock.

For more information, visit www.carvesmart.com.
