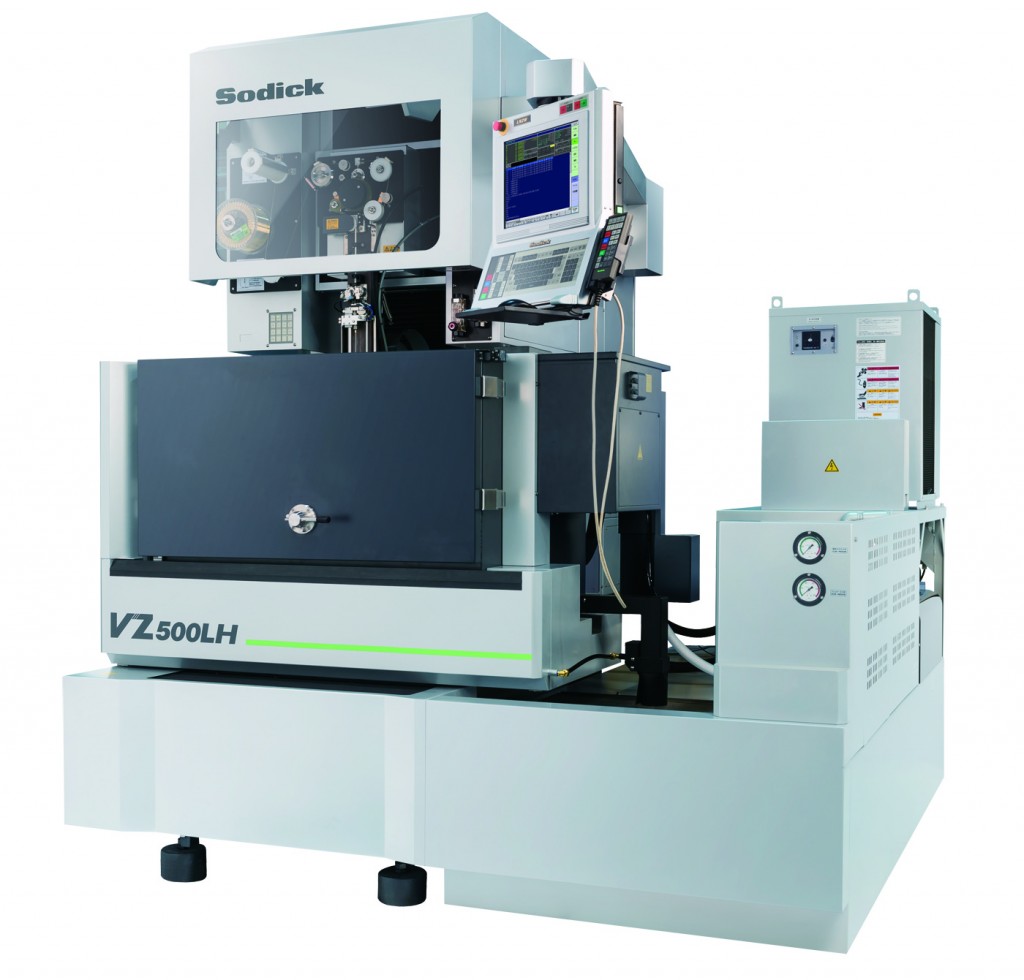

Sodick is adding to its lineup of machines. The new VZ500LH originated from the highly successful VZ Series, cost-friendly Wire EDM Machines. All VZ models have rigid linear motor drive technology as standard, and are provided with a 10-year positioning accuracy guarantee.

The VZ500LH was created in response to the growing demand for large capacity Wire EDM Machines featuring extreme height capability.  This type of machine is often ideally suited for mold and die, aerospace and energy applications including parts, such as; turbine hubs, aerofoil vanes, instrument panels and mold cores.

The VZ500LH was debuted at IMTS 2014; it features a 17.2” Z axis cutting capacity.  Additional standard features include a Super-Jet AWT (High Speed Automatic Wire Threader), wire-tip disposal unit, anti-electrolysis circuit and dielectric cooling unit (chiller).

The control incorporates collision protection to prevent against operator error.  This technology constantly monitors axis load.  When voltage exceeds a pre-determined limit, the machine will stop and give the operator an error message.  With the rigid linear motor drive system, there is no mechanical connection between the rigid linear motor drives and the table, unlike ballscrew drives, which can incur costly repairs in the event of a collision.

The control also features automatic machining condition selection.  This is a database within the machine that contains details on the best conditions for a particular wire diameter, workpiece material or workpiece thickness and ensures the best possible machining results.  The operator can utilize the extensive conditions provided by Sodick or add their own conditions to suit unusual applications.
