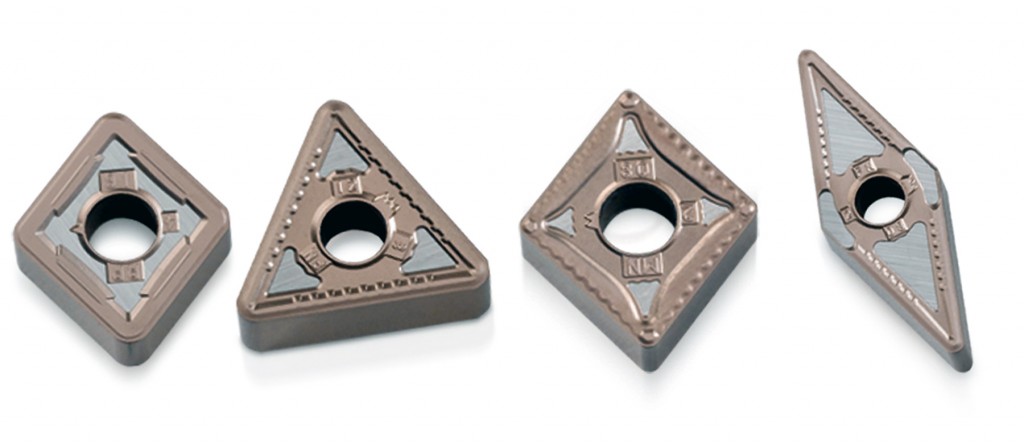

New Beyond Drive inserts from Kennametal feature a bronze TiOCN top coating that increases wear resistance and functions as a wear indicator. The Beyond Drive cutting tool inserts are specifically designed for cast irons, steels, and stainless steels that make up many critical components over a variety of industries.
Like all of Kennametal’s Beyond line of products, Beyond Drive inserts feature a proprietary post-coat surface treatment that improves edge toughness, reliability, and depth-of-cut notch resistance, and a micro-polished surface to reduce friction and workpiece sticking (BUE). A fine-grained alumina layer allows for increases in cutting speed, improving productivity and reliability at high cutting temperatures.
With Beyond Drive, adding a new titanium oxy-carbonitride outer coating (TiOCN) not only increases wear and abrasion-resistance, its bronze color is also an effective wear indicator. Depending on the application, field tests are showing anywher between 30 per cent and 125 per cent more parts per edge.
All new Beyond inserts are CVD (chemical vapor deposition) coated and undergo a proprietary post-coat treatment on all surfaces to reduce this stress, which improves coating adhesion and reduces micro-chipping.
“Together with the right geometry, we’ve seen big improvements in cutting performance and tool life in both internal and field tests,” says Manuel Sedan, senior product manager, turning products, at Kennametal.
For example, in one test for a plant producing cast-iron transmission components, with no change in feed, spindle speed, or depth of cut, Beyond Drive completed 325 pieces per cutting edge compared to 200 pieces for the plant’s current inserts. Not only was this a phenomenal increase in parts per edge, projected machine hours freed per year totaled 125 while the number of inserts required per year dropped from 813 to 500.
Beyond Drive is available in eight grades and numerous insert styles, covering a complete range of applications for turning steel and cast iron components.
For more information, visit www.kennametal.com.
