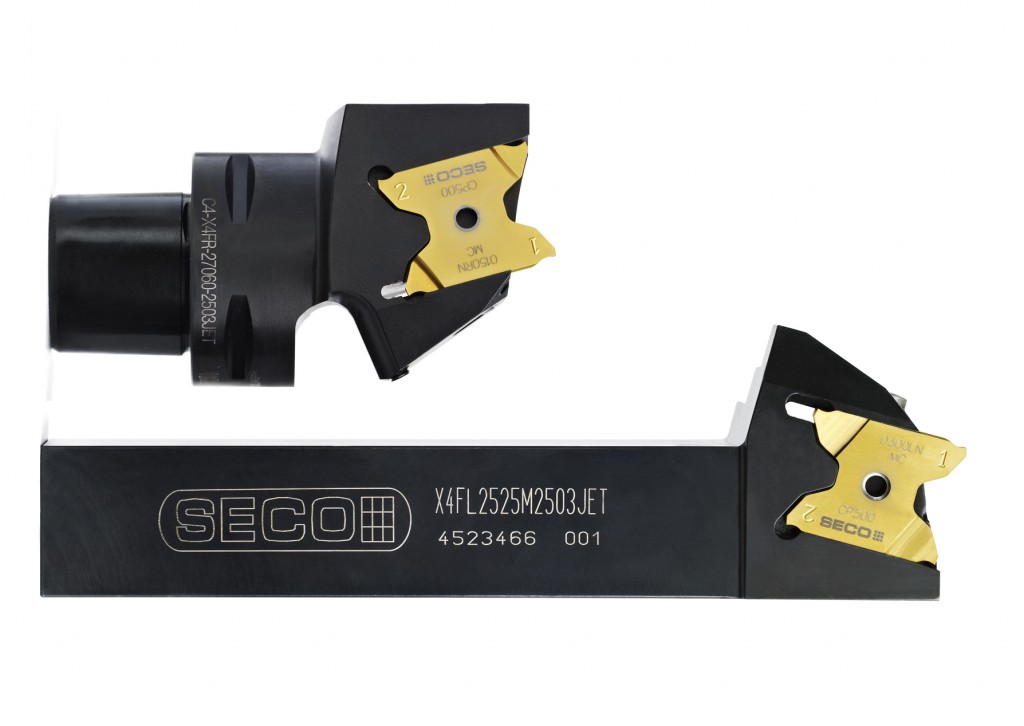

Seco has introduced their X4, a new multi-edged, tangential tool for grooving and parting off of small components.

The tool is available in cutting widths from 0.031-inch to 0.093-inch. It minimizes material consumption in parting off, and enables precise grooving and copying of small and medium-sized complex parts.

To increase flexibility, each X4 insert type can be fastened to any X4 insert seat, allowing for reduction of tooling inventory. Depending on the cutting edge width, the tool’s maximum cutting depth ranges from 0.102-inch to 0.256-inch and can cut off maximum bar diameters from 0.205-inch to 0.512-inch. X4 inserts are available in neutral, right-hand angled and left-hand angled cutting edge options.

Ideal for a wide variety of common workpiece materials, X4 uses CP500 and CP600 insert grades. CP600 features a mix of toughness and wear resistance suitable for most general applications, while CP500 provides increased wear resistance for more challenging cutting scenarios.

Inserts with the MC chip-breaking geometry can be applied. This versatile geometry achieves excellent formation of comma and clock- spring chips in a variety of materials and uses astraight front edge line to guarantee a straight bottom within a groove.

All X4 toolholders incorporate Seco’s unique Jetstream Tooling Duo technology to further enhance productivity, lengthen tool life and improve chip control.

By delivering coolant from two outlets to optimum points in the cutting and heat zones, Jetstream Tooling Duo contributes to efficient cooling, ideal chip formation and high part quality.

The X4 is offered in shank sizes of 0.63-inch, 0.75-inch and 1.00-inch, as well as Seco-Capto C4, C5 and C6.
