Internal Coolant Drills for Drilling Depths up to 7xD
SGS Tool Company’s ICe-Carb drills eliminate the need for pecking in most applications and feature unique geometry that enhance coolant flow and chip removal. The series features a 140 degree self-centering point angle, corner protection for increased tool life and Ti-NAMITE-A (AlTiN) coating for higher thermal stability and greater wear resistance in deep hole drilling.  Excellent results in Stainless Steel, Alloyed Steel, Cast Iron, Low Carbon Steel, Tool Steel, Inconel and Titanium
SGS Tool Company
www.sgstool.com

New foamy lubricant increases tool life of taps, drills, & annular cutters
Hougen Manufacturing, Inc., announces their new RotaFoam Cutting Fluid. In most metalworking applications, nothing is more important than proper tool lubrication. RotaFoam Cutting Fluid is an extreme heavy-duty foamy aerosol lubricant that provides superior protection to the cutting tool even in hard, high torque machining applications. RotaFoam Cutting Fluid has “super sticky” properties to adhere to the tool and reduce friction throughout the cut. Formulated with XHD blue colored foam which allows the operator to consistently gauge wher the lubricant is sprayed and visually assures thorough coverage. Designed for use on all metals including: carbon steel, stainless steel, inconel, hastalloy, titanium, aluminum and other alloys and exotics. RotaFoam™ is a versatile cutting fluid that provides maximum lubrication and increased tool life in many different applications and tools. Example of applications include: annular cutters, taps, drills, saws, reamers and end mills. RotaFoam is available in single net weight 17 oz. (482g) aerosol cans or in a case of twelve cans.
Hougen Manufacturing, Inc.
www.hougen.com

Expanded solid carbide drill line
Walter Titex X-treme solid carbide high-performance drills from Walter are now available as non-coolant thru drills.Like the popular internally-cooled series, these non coolant thru X-treme drills are available from 1/8” to ¾” (3 to 25 mm) diameter and can be used with all common materials. Like the internally cooled line, these new Walter Titex X-treme drills feature a four-margins design which improves the stability of the drills relative to the workpiece. The four margins also ensure an improved hole surface finish. All drills in the Walter Titex X-treme solid carbide series feature an advanced aluminum chromium nitride-based XPL coating. In addition to the universal use of the tools for all ISO material groups, the tools also deliver enhanced tool life. Other features of this range of products include a 140 degree point angle and a cylindrical shank or whistle-notch shank according to DIN 6535. The h6 shank tolerance is suitable for shrink fit chucks.
Walter USA, LLC
www.walter-tools.com

New design for indexable boring bar system
Scientific Cutting Tools, introduces a revolutionary new design for indexable boring bar technology with the SCT Advantage Boring Bar System. The innovative design of the tool puts extra material wher needed for strength and chip control coupled with a finely ground insert finish and low profile screw design that will maximize your small diameter boring operations. The tools feature a micro-grain carbide shank for maximum rigidity plus a unique top cut that strengthens the pocket by 40% and directs chips away from the cut zone. Head is heat treated to resist pocket damage and shanks are chamfered for easy installation. Available in coated ALTiN or uncoated. Right and left hand styles are available from stock.
Scientific Cutting Tools
www.sct-usa.com

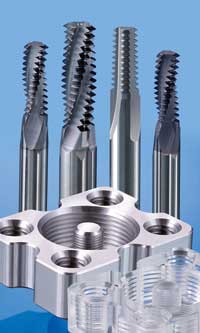

New high performance thread mills
Niagara Cutter introduces their new line of High Performance Carbide Thread Mills for higher quality threads, increased productivity, and consistent performance. Available in a wide range of thread sizes and diameters, these specially designed Thread Mills are available with several options, including: AlCrN Coating, Extended Reach and Coolant-Through. Also available are the CVD Diamond Coated Thread Mills eliminating the challenges associated with producing threads in composite materials. For over 50 years, Niagara Cutter has supplied industries with a broad range of High Performance End Mills in sizes from Micro Decimal (0.005 in.) to 3 inch diameter.
Niagara Cutter
www.niagaracutter.com

Quick change boring bars for multiple applications
Master tool offers single or complete packages of HSK Quick Change Boring Bars to meet any application. Features include ISO standard inserts and coated or PCD-tipped inserts for long tool life. HSK quick change shanks rough and chamfer on same stroke and are repeatable within 0.000050 (.001 mm).
Sumitomo Electric Carbide Mfg.
Master Tool Division
www.mtctools.com
