GF Machining Solutions demonstrates the precision, performance and efficiency of its systems designed with medical machining applications in mind.

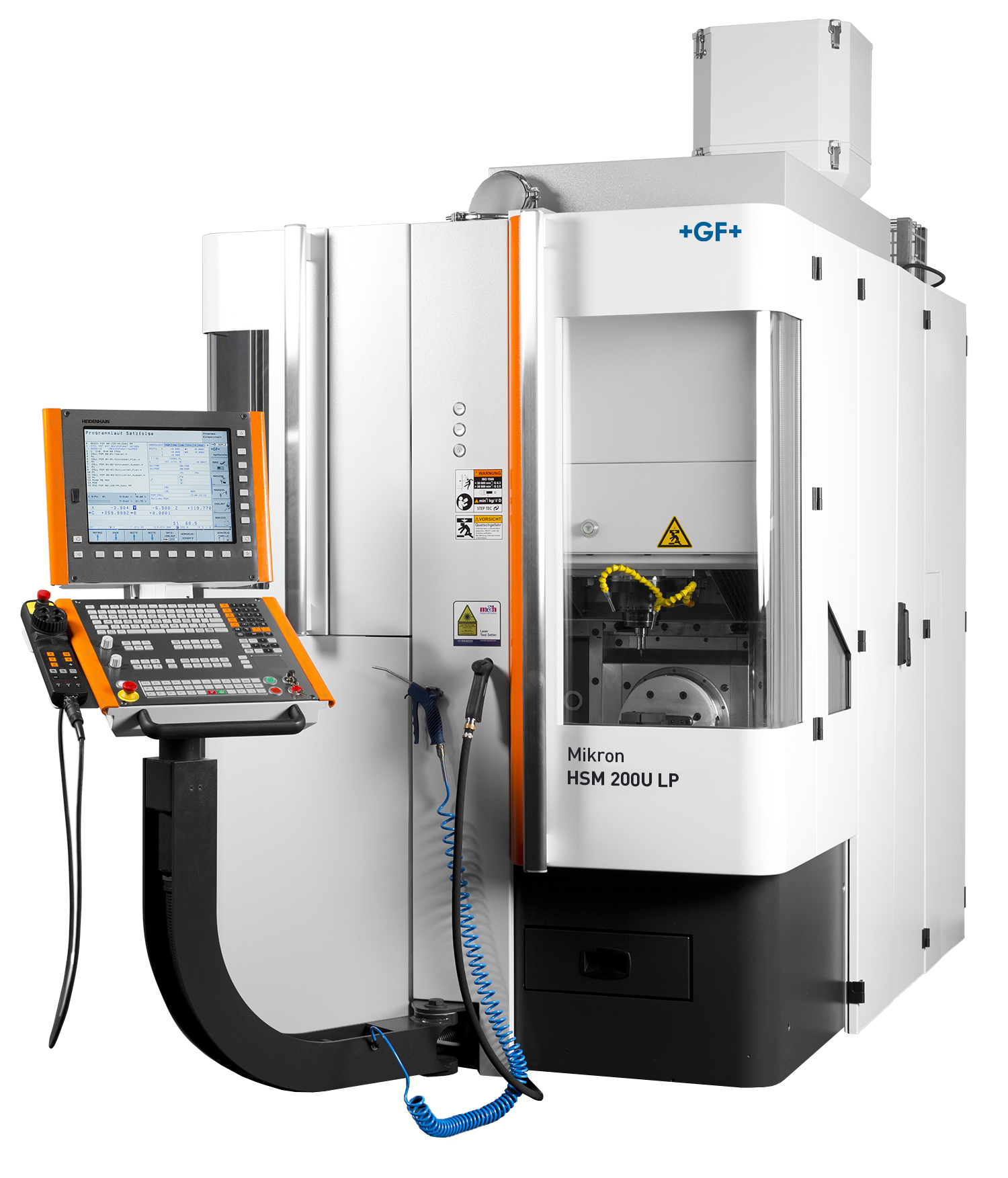

Available in 3- and 5-axis versions, the Mikron HSM 200U LP brings speed, efficiency, precision and superior surface finishes to the machining of small, complex components, including steel denture bars, medical implants, tiny sinker EDM electrodes and other highly detailed parts. The machine accommodates the medical industry’s increased need for lean manufacturing via small-footprint, high-speed machines. Additionally, the Mikron HSM 200U LP’s compact size allows it to fit into facilities with limited floor space and tight working areas such as dental labs.

The Mikron HSM 200U LP can produce workpieces via true 5-axis simultaneous high-speed machining. Linear motor technology in the main machine axes and optimized direct-drive motors for the B and C axes result in high precision and part surface finishes as fine as Ra 0.05 µm. Furthermore, the machine’s powerful 50,000-rpm, 11.4-hp Step-Tec spindle also contributes to precise part details and excellent surface finishes.

To further enhance productivity, the Mikron HSM 200U LP possesses the capability for 24/7 unattended machining using its optional Mikron pallet magazines with System 3R and Erowa interfaces. These fully integrated pallet magazines can be loaded without interrupting cutting operations already in progress. The automation of tool or workpiece handling is possible from three sides of the machine.
